Automatic Feeding Line Equipments Production Line Feed Chicken Poultry Farm Animal Feeders

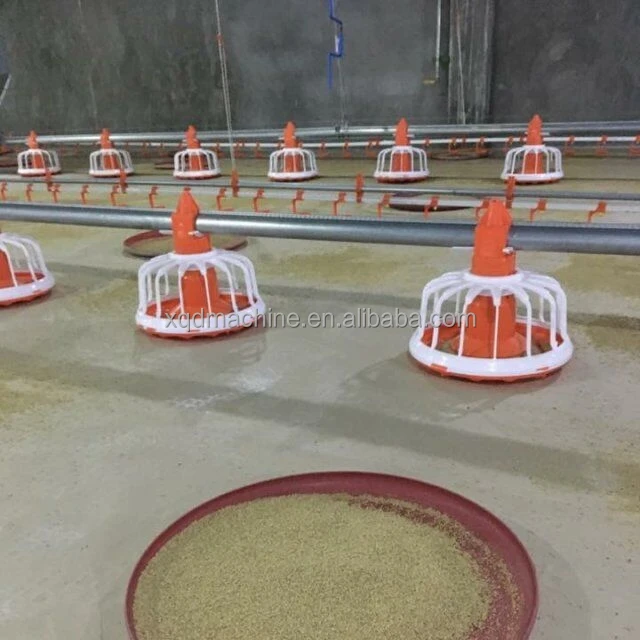

Broiler Automatic feeding system
Consists of a driving device, a hopper, a conveying pipe, an auger, trays, a suspension lifting device, an anti-perching device and a feed sensor. The main function of the system is to convey the feed in the hopper into each tray to ensure the eating of the broiler and automatically control the conveying opening/closing of the motor by the material level sensor to feed automatically.
Parameter of Feeding Line
1. High-quality special driving motor Italy Transtechno
Power: 0.75kw, voltage: 380V, frequency: 50HZ, three-phase AC current
2. V-shaped Bin (With Hopper)
Bin Volume: 115L, hopper volume: 38L,
Material: hot-dip galvanized sheet
3, Feeding System 3M 4holes Feeding pipe
Diameter of conveying pipe: φ45mm
Material: Quality hot-dip galvanized steel pipe with the zinc coating amount of more than 275g/m2
Helical spring auger from South Africa feeding capacity: 450kg/h
4. Material level sensor from Israel: time delay range 0 to 2 hours
Advantages of Chicken Broiler Breeder Pan Feeder and Drinker System
1--Save time and labor, one shed just need one person.
2--Increase survival rate.
3--Easier to operate.
4--Easier to install and clean.
5--Longer service life.
6--Competitive price.
7--Complete controlled poultry equipment
| Product Name | Chicken Broiler Breeder Pan Feeder and Drinker System |
| Material | pp |
| Pan distance | 3-4 pans/3m |
| Space between two grills | 75-100mm |
| Transmission speed | 450kg/h |
| Usage | Livestock Feeding |
| Color | Orange |
| Feature | Save Breeding Cost |
| Type | Livestock Equipment |
| Application | Poultry Farm Chicken/Duck Feeding |
